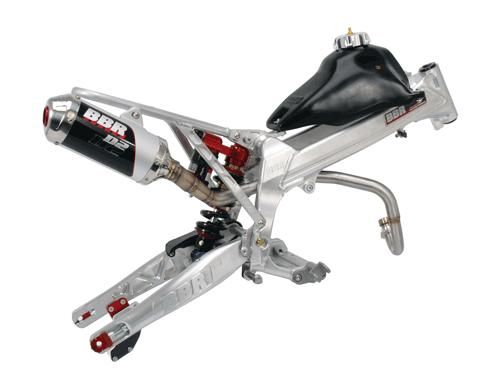

The BBR Perimeter Frame Kit is the ultimate upgrade for your XR/CRF50. An engineering masterpiece with the results to back it up. This frame has won numerous 50cc titles in America and around the world: Langtown, White Bros. World Championship, Screwy-Dilla, Sweet Bud, Vegas MiniMoto SX, Texas MiniMoto, Northwest Indoor Championship, Australia National Championship, and many more. The unique frame and swingarm design provides superior handling and eliminates the motor as a stress member of the frame. Broken motor cases and twitchy handling are a thing of the past! 100% engineered, machined, welded, heat-treated and tested in the USA. No other frame on the market even comes close. | ||
|
• Patented BBR perimeter frame design • 6061 aluminum twin spar construction 2" longer than stock • 6061 Billet adjustable SuperComp Swingarm 5" longer than stock • 8" of rear wheel travel utilizing a one-of-a-kind BBR SuperShock (by Elka), custom-built specifically for the BBR Perimeter frame. It is fully rebuildable, uses standard size valving and shims and has a giant 16mm shaft. It also provides adjustable compression and rebound with optional spring rates. (Standard spring rate is 1,100 lbs.) • Full D2 exhaust system (big bore spec) • Tapered steering bearings pre-installed for easy assembly • Brushed aluminum finish • Comes complete with MSO paperwork for easy registration |
|||
| Complete Frame Kit includes: frame, subframe, swingarm, shock, D2 exhaust system, custom tank, footpeg mounts, carb manifold adapter, chain guide and BBR billet gas cap. | |||
| Part Number | Application | Price | |
| 350-BBR-5010 | Frame Kit - Perimeter +2"/+5" w/Supercomp Adj. Swingarm / XR/CRF50*** VIN # | 2499.95 |
|
| Replacement Parts: | |||
| 110-HCR-1204 | Gas Cap - Billet, "R" | 69.95 |
|
| 205-HXR-5035 | Exhaust System - D2, Silver / Perimeter CRF50 | 329.95 |
|
| 330-BBR-1010 | Swingarm Pivot Bearing - (ea) / All BBR Swingarms | 18.75 |
|
| 330-BBR-1056 | Swingarm Pivot Bushing - (ea) / Perimeter 50 w/Supercomp S/A | 12.75 |
|
| 330-BBR-1101 | Chain Slider - SuperComp Swingarms | 18.95 |
|
| 330-BBR-1201 | Leverage Block - Red/Soft / Supercomp S/A | 55.95 |
|
| 330-BBR-1202 | Leverage Block - Blue/Medium / Supercomp S/A | 55.95 |
|
| 330-BBR-5007 | Swingarm - SuperComp Adjustable, +5" / SuperPro/Perimeter 50 | 699.95 |
|
| 340-HXR-5011 | Chain Guide - Black / XR/CRF50, 00-Present | 69.95 |
|
| 350-BBR-5105 | Subframe - Perimeter 50 Aluminum * | 249.95 |
|
| 350-BBR-5112 | Chain Roller - SuperPro/Perimeter | 14.50 |
|

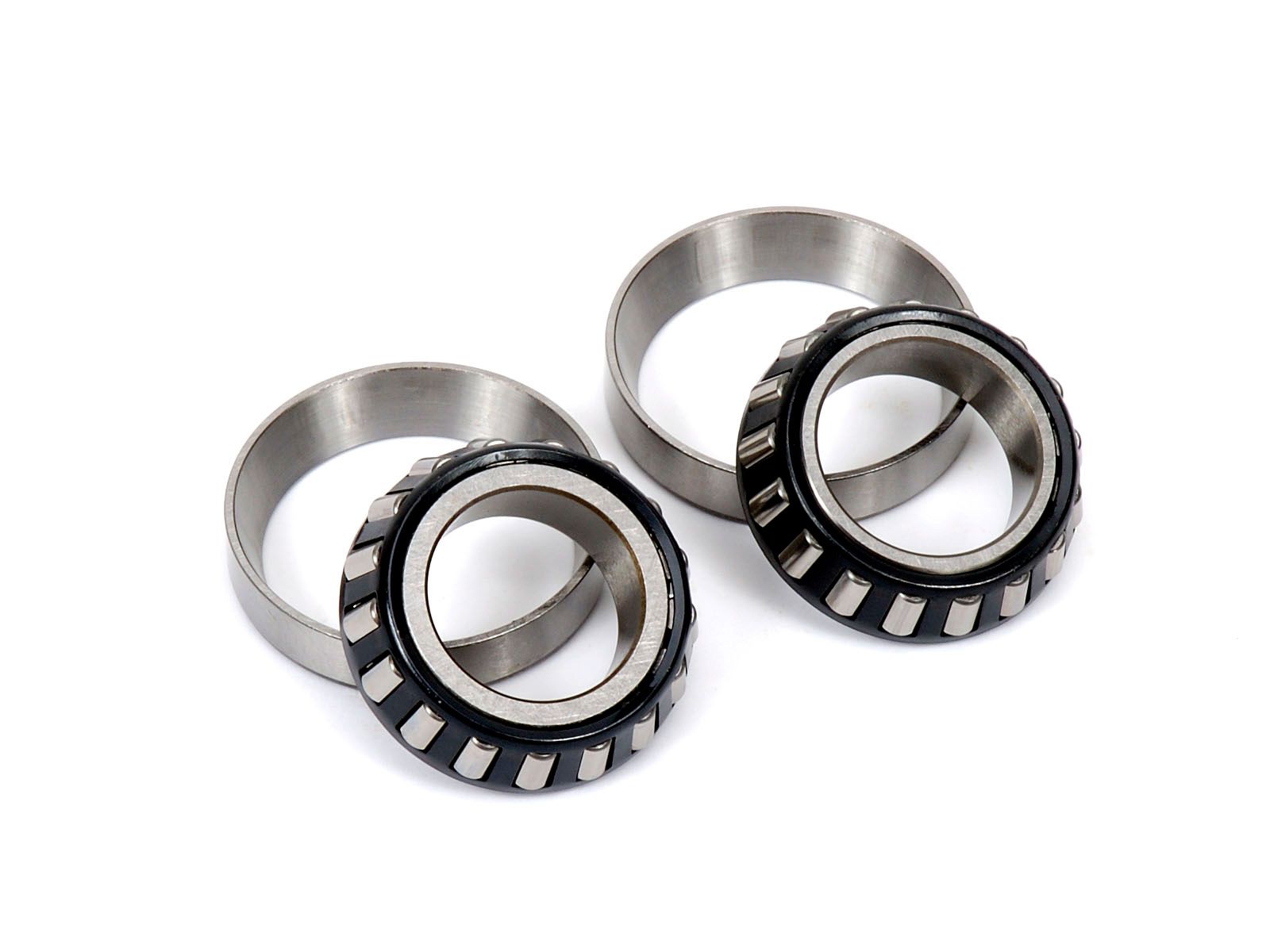

| 516-HXR-5001 | Steering Bearing Set - Tapered / XR/CRF50/70/80/100 | 39.95 |
|
| 640-HXR-5502 | Shock - BBR/Elka w/1100lb spring / XR/CRF50 Perimeter-S/P Frames * | 699.95 |
|
| 641-HXR-5102 | Bearing/Bushing/Seal Kit - BBR/Elka Shock / XR/CRF50 / KLX110 | 34.75 |
|
| 641-HXR-5105 | Shock Seal Head Assy - BBR/Elka Shock / XR/CRF50/KLX110 | 68.50 |
|
| 660-HXR-1006 | Shock Spring - BBR/Elka Shock 1100lb. | 89.95 |
|
| 705-HXR-5001 | Gas Tank - Perimeter Frame / XR/CRF50 | 129.95 |
|
| Optional Parts: | |||
| 212-BBR-5005 | Exhaust Header - D-Section Oversized / Perimeter 50 Frame | 169.95 |
|
| 330-BBR-1203 | Leverage Block - Black/Stiff / Supercomp S/A | 55.95 |
|
| 530-IMS-1001 | Footpegs - IMS Pro-Series 4 / XR/CRF50/70/80/100 | 95.95 |
|
| 550-HXR-5011 | Disc Brake Kit - BBR Rear, Black / Perimeter Frame XR/CRF50 | 549.95 |
|
| 550-HXR-5031 | Disc Brake Kit - BBR Rear, Silver / Perimeter Frame XR/CRF50 | 549.95 |
|
| 585-HXR-5002 | Tank Cover - Carbon Fiber / Perimeter XR/CRF50 | 49.95 |
|
| 632-HXR-5511 | Fork Kit - Marzocchi Shiver 35mm Works 12", Black / XR/CRF50 *** | 1350.00 |
|
| 660-HXR-1005 | Shock Spring - BBR/Elka Shock 975lb. / XR/CRF100, 85-03 | 89.95 |
|
| 660-HXR-1007 | Shock Spring - BBR/Elka Shock 1200lb. (D*) Blowout Sale $69.95 | 69.95 |
|
