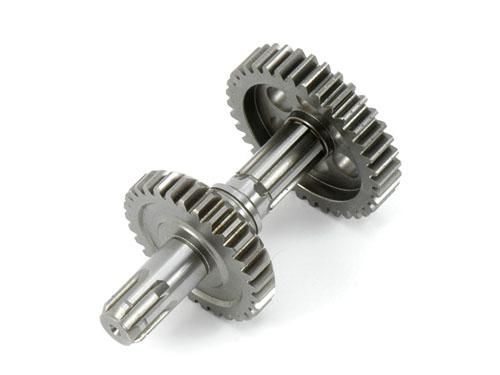

BBR KLX/DRZ110 Forged Output Shaft w/1st Gear
BBR KLX/DRZ110 Forged Output Shaft w/1st Gear
411-KLX-1150(A), Output Shaft - Forged w/1st Gear / KLX/DRZ110
411-KLX-1150
Click here for printer friendly version


Developed for the BBR race team, this forged shaft is the strongest available on the market. A must have for high-horsepower motors. Comes with a forged, high-strength 1st gear. The end oiling-hole has been eliminated and the shaft is grooved for proper oiling of 1st gear. 1st gear also rides on a bushing. We consider this to be the strongest design available. We recommend that you use this in combination with our D-Comp camshaft for the best results.

    • Forged for ultimate strength from proprietary steel alloy
• Installs like OEM parts
• Includes bushed 1st gear


  Why use a forging? Experts agree that a forged shaft, of identical material, will be stronger than a cast or machined shaft (billet). The reason is that the grain of the material is aligned with the shape of the shaft with a forging. On a machined shaft, unidirectional grain flow has been cut when changing contour, exposing grain ends. This renders the material more liable to fatigue and more sensitive to stress corrosion cracking. Want to learn more about forgings? Hit your favorite search engine and type in forged versus billet. You'll find many articles describing why forgings are the best choice for formed shafts (especially gear shafts). SAE and the Forging Industry Association all have peer reviewed engineering research papers comparing the two processes. Here are a few links that you might find interesting:
http://www.forging.org/facts/wwhy3.htm
http://www.scotforge.com/sf_facts_forgingadv.htm
http://www.gearsolutionsonline.com/index.html?nav.html&header.html&articles/forging0805.html


Part Number Application Price
411-KLX-1150Output Shaft - Forged w/1st Gear / KLX/DRZ110, 03- Present169.95buy
Optional Parts:
410-KLX-1141Camshaft - Decompression, BBR MX / KLX/DRZ110 * ** DISCLAIMER! This camshaft is a Non-Production, Race-Only part. BBR DOES NOT offer any warranty and will not be held responsible for any damage as a result of potential failure. Please 299.95Please Call for Inventory Status on this Item
