Fork Kit - E-6 Front / KLX/DRZ110 02-Present
Fork Kit - E-6 Front / KLX/DRZ110 02-Present
630-KLX-1114(A), Fork Kit - E-6 Front / KLX/DRZ110 02-Present *
630-KLX-1114
513-KLX-1101(A), Brake Cable - + 5" / KLX/DRZ110, 02-Present
513-KLX-1101
Click here for printer friendly version


This item is currently no longer available from BBR Motorsports. The product page has been left online for its information and content to support current owners of the item. Support of replacement parts by BBR is still available. Please see listings below if this applies.

BBR has adapted E-6 technology to the KLX/DRZ 110. The result is increased travel, 1.5” longer fork, stiffer spring rate, better damping, dual bushings and chrome-moly fork tubes. Add it all up and you get dramatically improved performance making your KLX 110 much more fun for both adult and kid riders. The E-6 fork tubes slide right into your stock tripleclamp for easy installation.


    • 6" Travel (1.7" longer than stock)
• Better dampning
• Dual bushings
• Ultra-strong chrome-Moly fork tubes with Ti-nitride coating
• Can be used with stock lower and upper tripleclamp or BBR bar kit option
• Includes extended brake cable


  Or, you can go all the way and add the BBR handlebar/tripleclamp kit which provides more leg room, added rider comfort and improved stability by raising the hand position 1.5” and moving it forward 1.5”. Includes billet 6061 aluminum tripleclamp with double pinch bolts, large clamping surface, two-position bar mount, BBR MX handlebar with pad, forged MX brake lever, +5” brake cable, BBR grips with grip glue and a BBR kill switch

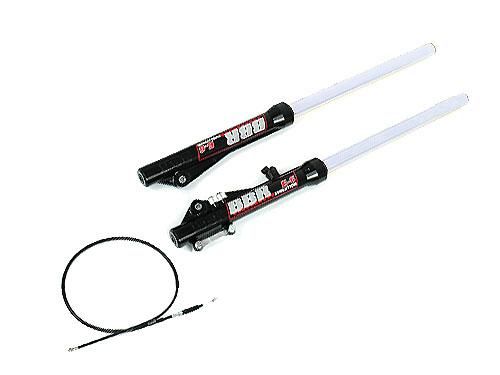

630-KLX-1114 / Fork Kit includes: Fork leg set (L & R), proper wheel spacers and brake drum bracket and an extended brake cable

  Installation Instructions:  E6_Fork_info.pdf
  Installation Instructions:  E6 ASSY.PDF

Part Number Application Price
630-KLX-1114Fork Kit - E-6 Front / KLX/DRZ110 02-Present *379.95Please Call for Inventory Status on this Item
Replacement Parts:
513-KLX-1101Brake Cable - + 5" Extended / KLX/DRZ110, 02-Present24.00buy
635-HXR-5200Oil & Dust Seal - 30X40.5X10.5 (ea) / E-611.50buy
Optional Parts:
330-KLX-1106Swingarm Kit - SuperComp W/Elka Shock / KLX/DRZ110/L, 02-Present *1399.95Please Call for Inventory Status on this Item
510-KLX-1511Handlebar Kit - W/Tripleclamp. Black / KLX/DRZ 110, 02-Present279.95Please Call for Inventory Status on this Item
510-KLX-1531Handlebar Kit - W/Tripleclamp, Silver / KLX/DRZ 110, 02-Present279.95Please Call for Inventory Status on this Item
640-KLX-1102Shock - Fox Float MXR Airshox / KLX/DRZ110 02-Present (non L model)299.95Please Call for Inventory Status on this Item
