KLX140 Performance Camshaft


411-KLX-1820
411-KLX-1820
411-KLX-1820

Click photo to zoom

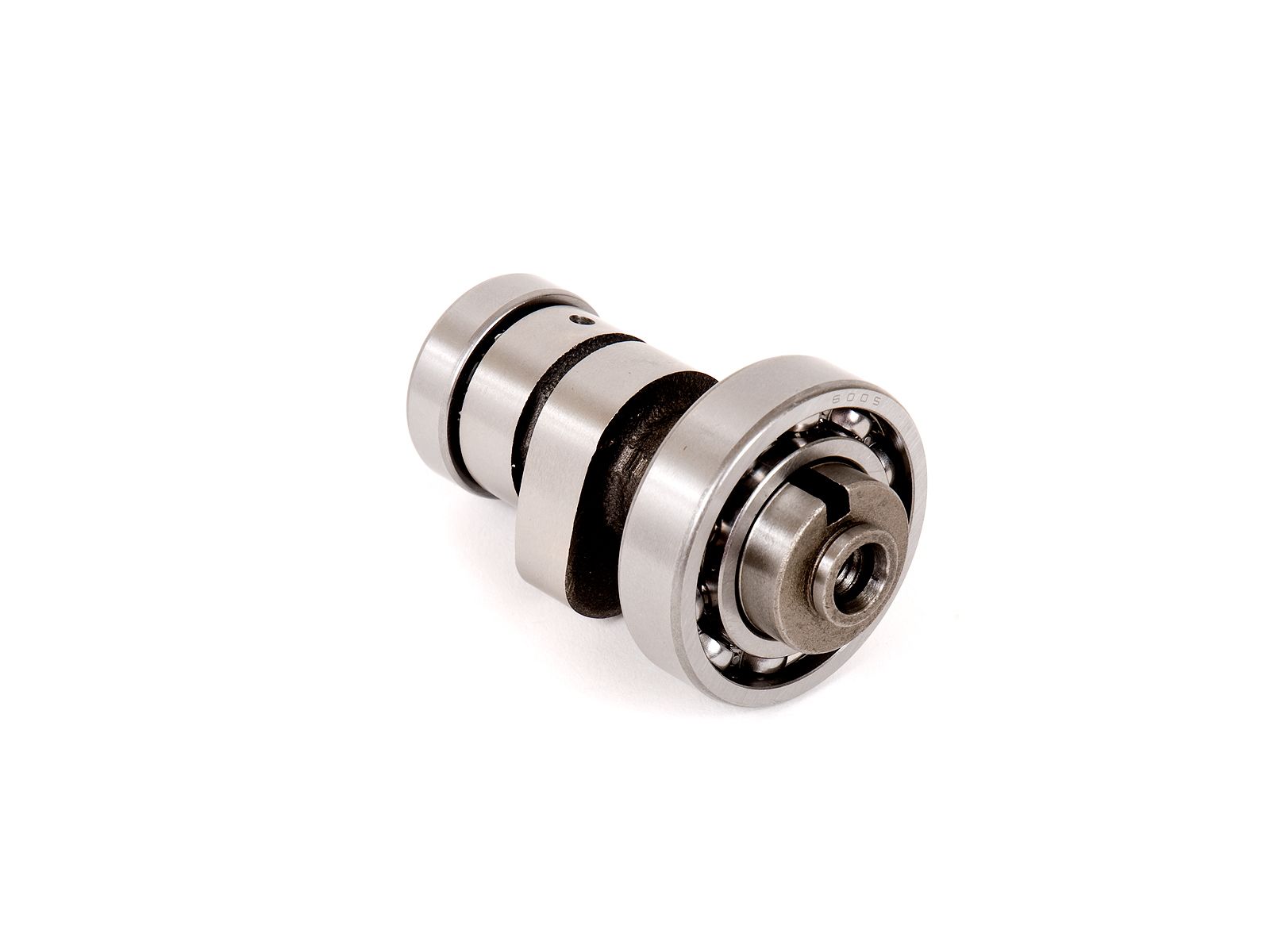

KLX140 Performance Camshaft
QTY    $178.95bbrmotorsports.shop
Any additional options and/or replacement parts will be available at the bottom of this page

KLX140 Performance Camshaft

A brand new camshaft purpose built for the KLX140! The KLX140 is the ultimate trail bike. It just needs a little more power. The valves and ports are big. Kawasaki put on a tiny corked up exhaust, a tiny camshaft, tiny carb, and low compression piston. Our 170 kit fixes the piston side of it and lots of great exhausts already exist. Now we have the solution to the camshaft side.

This new camshaft grind benefits from all the years of BBR testing, racing, and development. It is the latest and greatest of what we offer and hands-down the single best improvement of any camshaft we've built to date. We've been durability testing this thing all year and we haven't had a single engine failure related to this camshaft. The best part is it will still run on 92 octane - so you can hit the trails and not drive around looking for race gas.


  • Adds 1+ hp to fully modified motor
  • Makes more aggressive race-style of power
  • Bike still starts easily and idles smooth
  • Same camshaft as used by the BBR Race Team
  • No exchange required

Note: The BBR KLX140 Performance Camshaft installs the same as the OEM camshaft (valve clearance IN: .002"-.003" / EX: .004"-.006"). We recommend you purchase an OEM Kawasaki KLX140 Service Manual to assist you when installing this camshaft.

Note: This camshaft has been designed to work with the OEM Kawasaki piston, or the BBR big bore kit piston, with OEM sized valves. Any other combination of parts will require that you manually check valve to piston clearance. This is typically done by assembling the motor with clay on the piston dome and carefully rolling the motor over by hand. The motor is then disassembled and the thickness of the clay is measured. We generally shoot for .050" of clearance on these smaller 2-valve air-cooled motors. If you don't understand this process you should check with a qualified performance engine buider. We can only support our own BBR products.



Part NumberImageDescriptionPrice
411-KLX-1820411-KLX-1820Camshaft - High Performance / KLX140/L/G, 08-Presentbbrmotorsports.shop
