BBR 26mm Carb Kit
QTY    $293.95bbrmotorsports.shop
Any additional options and/or replacement parts will be available at the bottom of this page

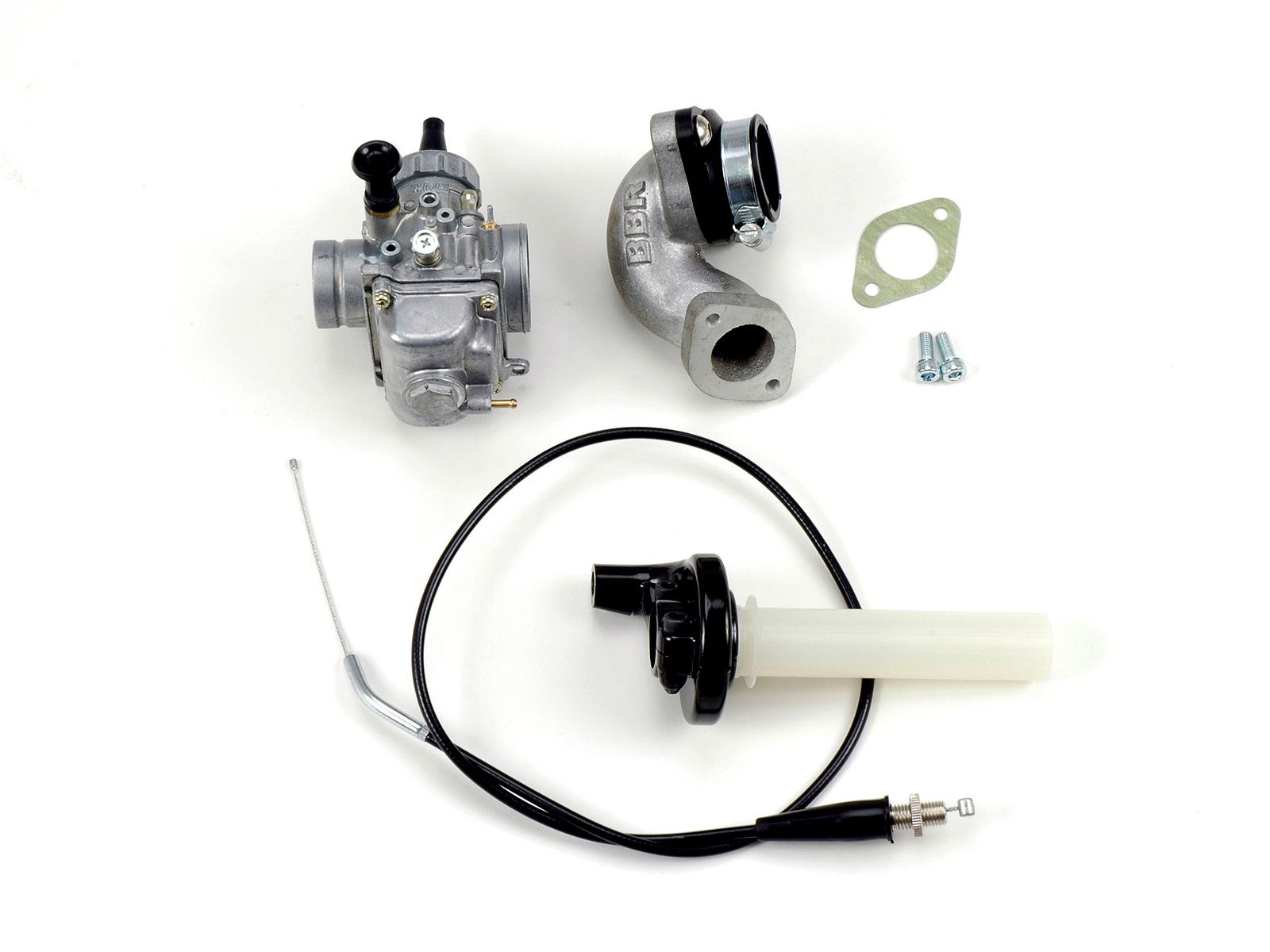

BBR 26mm Carb Kit

Featuring a Mikuni VM26 carburetor with BBR high-flow intake manifold for optimum performance. This kit is a must have for any bore kit larger than 143cc.


  • 26mm Mikuni VM26 carburetor
  • Special manifold sized for the KLX/DRZ110 head
  • Includes gaskets and bolts
  • Includes throttle and cable
  • Includes 5 main jets and 3 pilot jets

Application Note: This 26mm Carb Kit is not recommended for use on stock displacement KLX110's. Recommended for 143cc or larger displacement motors.

BBR General Jetting Guidelines Chart


Tech Info
420-KLX-1102 Instructions


Part NumberImageDescriptionPrice
420-KLX-1102420-KLX-1102Carb Kit - BBR Mikuni 26mm / KLX/DRZ110, 02-Presentbbrmotorsports.shop

Replacement Parts

Part NumberImageDescriptionPrice
421-BBR-2010421-BBR-2010Carburetor Only - Mikuni VM26 (190m/22.5p) *bbrmotorsports.shop
421-MIK-5001421-MIK-5001Jet Kit - Mikuni (150,160,170,180,200,20, 17.5 & 25)bbrmotorsports.shop
421-MIK-9001421-MIK-9001Gasket - Float Bowl / Mikuni VM26bbrmotorsports.shop
422-KLX-1101422-KLX-1101Mounting Flange - Mikuni VM26bbrmotorsports.shop

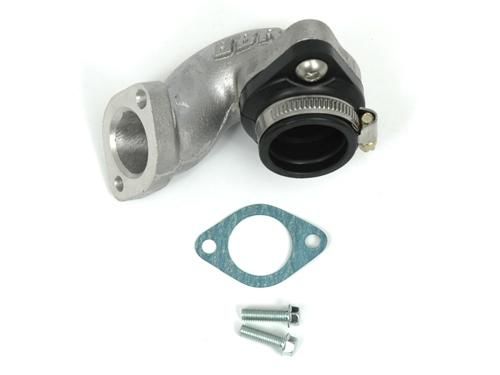

422-KLX-1102422-KLX-1102Intake Manifold Set - BBR VM26 / KLX/DRZ110bbrmotorsports.shop
512-BBR-1001512-BBR-1001Throttle Cable - BBR 18mm/26mm Carb Kit / XR/CRF50 / KLX/DRZ110 / Bar Kit - CRF110F / DRZ70bbrmotorsports.shop
512-BBR-2001512-BBR-2001Throttle Assembly - BBR Carb Kits / Brake Kitsbbrmotorsports.shop
