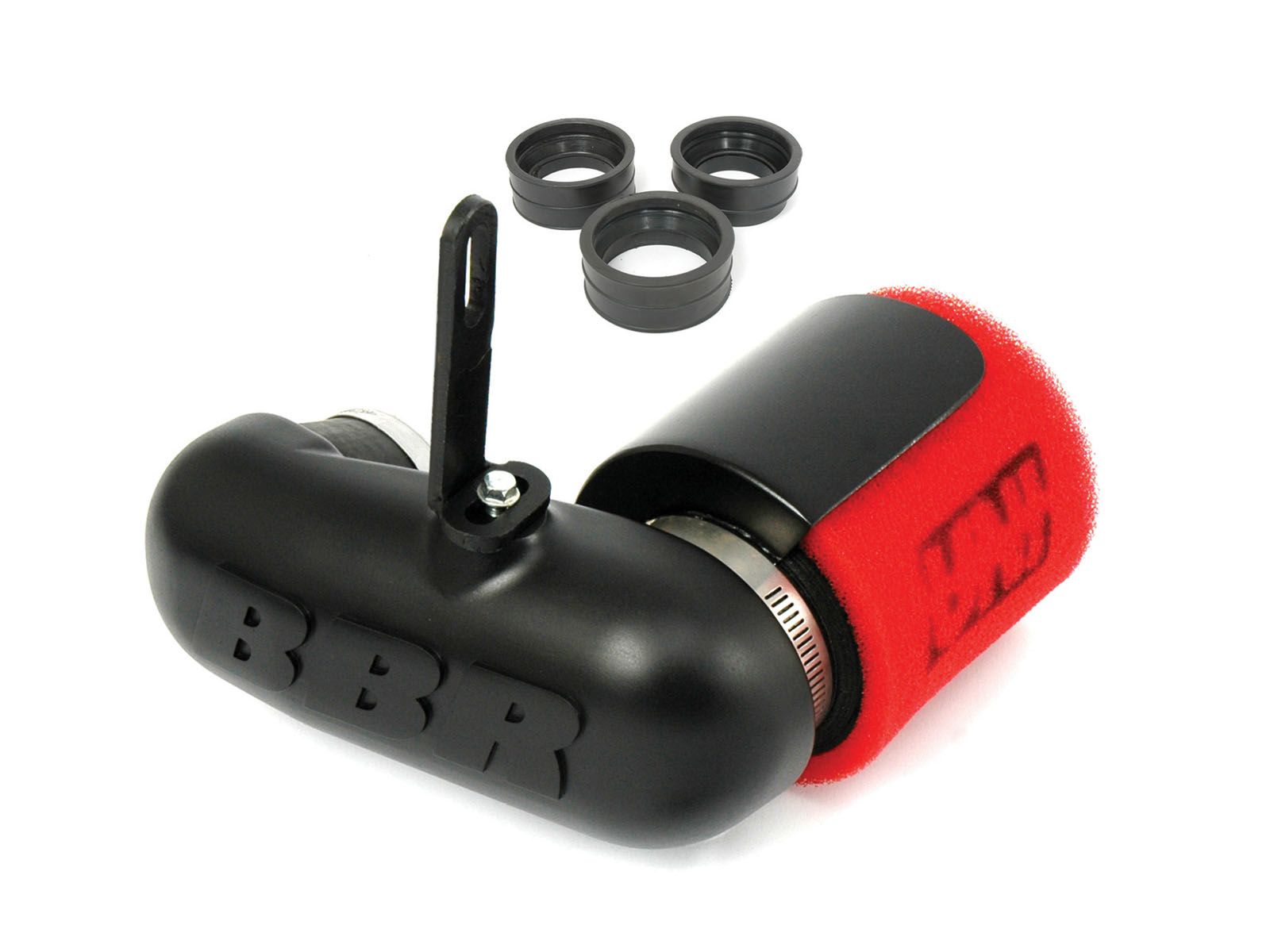

Air Filter Kit - U-Flow / KLX/DRZ110 02-Present
QTY    $146.95bbrmotorsports.shop
Any additional options and/or replacement parts will be available at the bottom of this page

Air Filter Kit - U-Flow / KLX/DRZ110 02-Present

BBR's exclusive U-Flow Air Filter System turns the filter around so it faces backwards, keeping it shielded from dirt and mud. It comes with a high-volume oversized Uni filter maximizing air flow. This innovative upgrade allows the bike to be jetted for optimum performance. The U-Flow delivers a high volume of air to your carburetor resulting in sharper throttle response. Complete kit includes adapters to fit stock KLX/DRZ110 carbs along with the Mikuni VM26 and Keihin PWK/PE28.

Includes Air Box Removal Bracket.


  • Sharper throttle response
  • Shields filter from dirt and debris
  • Maximizes air-flow with high-volume over-sized Uni Filter air filter
  • Allows bike to be jetted for optimum performance

NOTE: For stock frame applications the Air Box Removal Bracket Included in kit should be used for added support of the LH shroud.

**Note** Jetting Specs for U-Flow Air Filter **Note**
*Colder weather requires larger jets. Warmer weather and higher octane require smaller jets.*
92 octane @ sea level (60 degrees)
Stock KLX 110 = OEM Stock Carb and OEM Pipe (95-100 main jet)
Stock KLX 110 = OEM Stock Carb and BBR Pipe (100 -105 main jet)
KLX 110 Stock Carb 143cc Kit = (100-105 main jet)
KLX 110 Stock Carb 143cc Kit and BBR Pipe = (105 and up main jet)
KLX 110 143cc Kit, 26mm Mikuni Carb and BBR Pipe = (180 main jet, 22.5 Pilot)
KLX 110 160cc Kit, 26mm Mikuni Carb and BBR Pipe = (190 main jet, 22.5 Pilot)
KLX 110 160cc+ Kit, 28mm Kiehn Carb and BBR Pipe = (120 main jet, 42 Pilot)


BBR General Jetting Guidelines Chart


Tech Info
430-KLX-1110 Instructions


Part NumberImageDescriptionPrice
430-KLX-1110430-KLX-1110Air Filter Kit - U-Flow / KLX/DRZ110 02-Presentbbrmotorsports.shop

Replacement Parts

Part NumberImageDescriptionPrice
430-KLX-1111430-KLX-1111Air Filter Only - U-Flow / KLX/DRZ110, CRF110Fbbrmotorsports.shop
431-BBR-1005431-BBR-1005Mud shield - U-Flow Kitbbrmotorsports.shop
431-BBR-1006431-BBR-1006Carb Adapter Boot - KLX110 OEM Carb to U-Flowbbrmotorsports.shop
431-BBR-1007431-BBR-1007Carb Adapter Boot - CRF110F OEM Carb to U-Flowbbrmotorsports.shop
431-BBR-1008431-BBR-1008Carb Adapter Boot - PC18 Carb to U-Flowbbrmotorsports.shop
431-BBR-1009431-BBR-1009Carb Adapter Boot - Mikuni VM26 Carb to U-Flowbbrmotorsports.shop
431-BBR-1010431-BBR-1010Carb Adapter Boot - Keihin PWK/PE28 Carb to U-Flowbbrmotorsports.shop
431-BBR-1011431-BBR-1011Hose Clamp - BBR U-Flowbbrmotorsports.shop

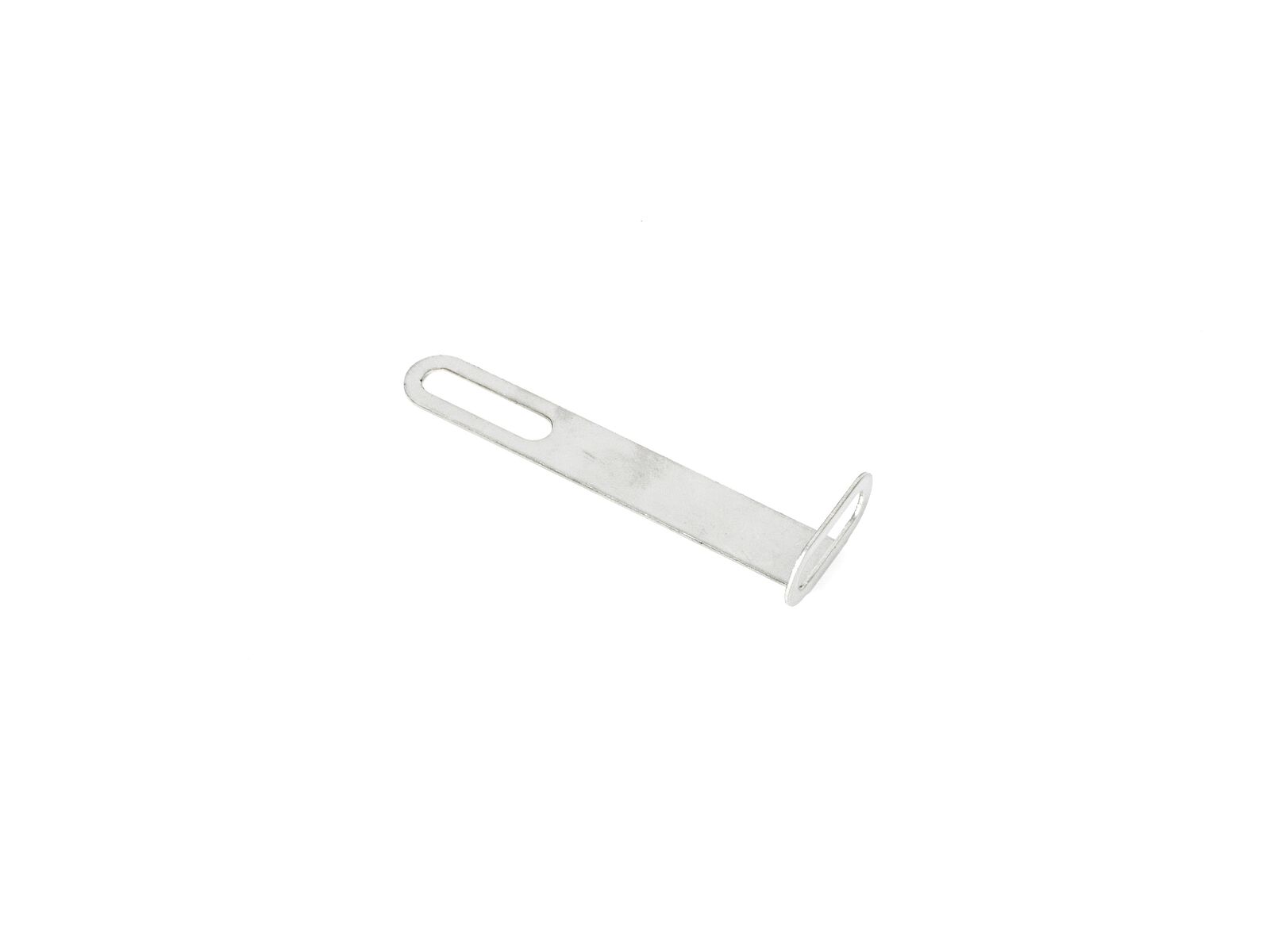

431-BBR-1012431-BBR-1012Mounting Bracket KLX110 - BBR U-Flowbbrmotorsports.shop

Optional Parts

Part NumberImageDescriptionPrice
430-KLX-1109430-KLX-1109Airbox Removal Bracket Only / KLX/DRZ110 02-Presentbbrmotorsports.shop
